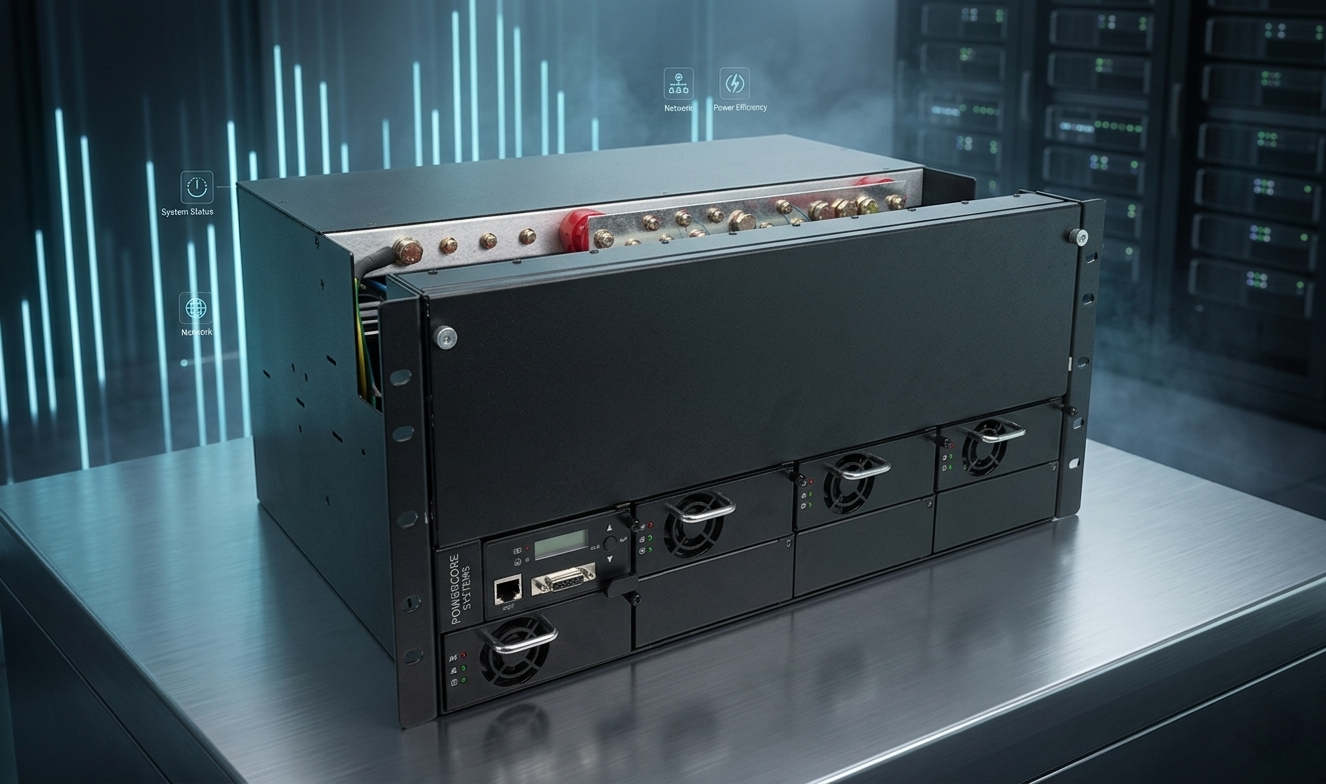

Rack Mount Power System
Rack mount Power System is a 19″ 5U rack-mount power system. It provides DC power by using four 48V 30A rectifiers, the battery can be shut down by BLVD located in the shelf inside while DC voltage is less than the battery protection voltage. The system is supported by a single monitor that provides all control and operational conditions, as well as alarms and output parameter configuration. It operates from -40℃ to +75℃, and it is designed for the harsh outside environment.
System configuration
| Power | Input voltage | Output voltage | Output current | Accuracy | Part model |
|---|---|---|---|---|---|
| 7200W | 90-300Vac | 53.5V | 120A | ≤±1% | HA150-48 |
| Distribution Section | |
| AC input | 63A/2P×1，Class C AC surge 16A/1P×4(rectifier input breaker) |
| AC output | N/A |
| DC output | 63A/1P×1，32A/1P×3，16A/1P×2 NPL 32A/1P×1, 16A/1P×1 PL |
| Battery input | 63A/1P×2 |
